Vertical Boat Lift Installation In Pewaukee & Lake Country
Lake Country Barge Docks and Lifts offers vertical boat lift installation in Pewaukee and the surrounding Lake Country communities. We’ll help you find the perfect solution for upgrading or installing a new lift. Contact us today for a free quote.

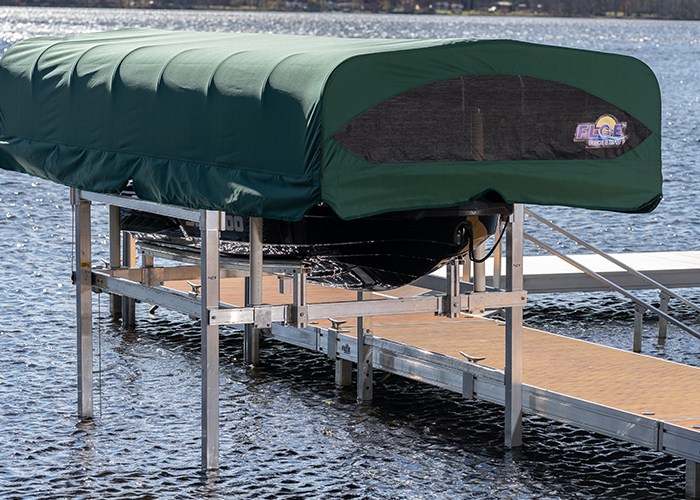

Vertical Boat Lifts from FLOE
Lake Country Barge Docks and Lifts installs FLOE vertical boat lifts, which feature an innovative bolt-together design with lock-nuts. There is no need for structural welds which allows for maximum rigidity and easy boat access. The main cradle beam even lowers to just 9.5 inches, allowing smooth operation even in shallow water.
FLOE's VSD technology stands out by raising and lowering boats in about half the time of most other powered boat lifts. The drive train is whisper quiet, with no clicking winch gears or pinging cable. Instead, the low-maintenance electric motor spins the screw so the ball nut travels back and forth, pulling the lifting cable. Impressively, the industrial strength ball screw is rated for 20,000 cycles at 10,000 lbs, eliminating the need to ever replace a worn winch cable. Other benefits include:
- Supports watercraft from 2,000 to 10,000 lbs
- The most energy-efficient vertical boat lift in the world
- Easy seasonal adjustment of lift height without getting wet
- Raise and lower your boat with the push of a button/remote
- No pins to align
- One-person job
Our Vertical Boat Lift Models
FLOE’s exclusive state-of-the-art, industrial strength Vertical Screw Drive [VSD] boat lifts are the perfect choice for those who want the best of the best. Designed to be virtually effortless, the whisper-quiet VSD boat lifts raise and lower boats in about half the time of other lifts.
VSD aluminum boat lifts are available in a 120-volt AC or a 24-volt DC version. Models include:
| Lift Model | Bed Travel | Inside Width | Outside Width | Outside Length | Leg Travel | Frame Weight (lbs) | Inside Width w/ 1 Vertical Guide | Inside Width w/ 2 Vertical Guides | Inside Width w/ Horizontal Guides | Inside Width w/ Perfect Park Guides |
|---|---|---|---|---|---|---|---|---|---|---|
| VSD-3800 | 52" | 119" | 135" | 114" | 30" | 538 | 107.5" | 110" | 107.5" | 110" |
| VSD-5000 | 52" | 119" | 135" | 114" | 30" | 569 | 107.5" | 110" | 107.5" | 110" |
| VSD-5000 PONTOON | 52" | 119" | 135" | 162" | 30" | 632 | 107.5" | 112" | 107.5" | 110" |
| VSD-6000 | 60" | 131" | 147" | 131" | 35" | 747 | 116.5" | 120" | 115.5" | 119" |
| VSD-6500 | 60" | 116" | 135" | 131" | 35" | 731 | 103.5" | 107" | 103.5" | 107" |
| VSD-6500 PONTOON | 60" | 116" | 135" | 167" | 35" | 770 | 103.5" | 107" | 103.5" | 107" |
| VSD-8000 | 60" | 116" | 135" | 131" | 35" | 731 | 103.5" | 107" | 103.5" | 107" |
| VSD-8000 PONTOON | 60" | 116" | 135" | 167" | 35" | 770 | 103.5" | 107" | 103.5" | 107" |
| VSD-10000 | 52" | 131" | 147" | 167" | 35" | 1010 | 116.5" | 120" | 115.5" | 119" |
| VSD-10000 STANDARD | 52" | 116" | 135" | 131" | 35" | 796 | 103.5" | 107" | 103.5" | 107" |
Vertical Winch Lift Models
FLOE vertical boat lifts featuring electric 12-volt and manual winches are built with the same craftsmanship as the VSD lifts. Aluminum winch boat lifts are strong and long-lasting. Models include:
| Lift Model | Bed Travel | Inside Width | Outside Width | Outside Length | Leg Travel | Frame Weight | Inside Width w/ Single Vertical Guide | Inside Width w/ Double Vertical Guides | Inside Width w/ Horizontal Guides | Inside Width w/ Perfect Park Guides |
|---|---|---|---|---|---|---|---|---|---|---|
| V-1600 | 51" | 60" | 73.5" | 73.125" | 24" | 155 | 55" | n/a | n/a | n/a |
| V-2000 | 50" | 93.5" | 109" | 102" | 30" | 225 | 82" | 84.5" | 82" | 84.5" |
| V-2602 | 50" | 119" | 135" | 66" | 30" | 268 | 107.5" | 110" | n/a | n/a |
| V-3600 | 50" | 119" | 135" | 114" | 30" | 372 | 107.5" | 110" | 107.5" | 110" |
| V-4600 | 50" | 119" | 135" | 114" | 30" | 414 | 107.5" | 110" | 107.5" | 110" |
4 Bunk and Boat Support Options
FLOE boat lift bunks feature versatile vertical and horizontal adjustability to provide maximum support and stability for your watercraft. Crafted from durable aluminum extrusions, the bunks are equipped with interlocked vinyl cushions that contour to the boat’s hull. This design offers a long-lasting, maintenance-free surface and won’t scratch your vessel.

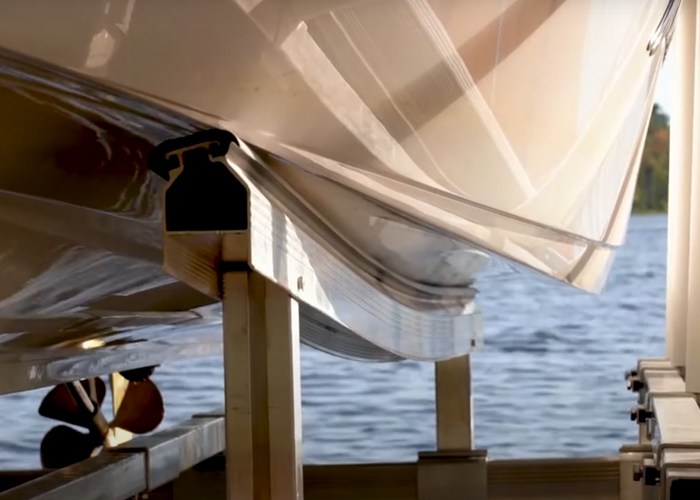

Cradle Pad Pivot Bunks
Feature versatile vertical and horizontal adjustability to provide maximum support and stability for your watercraft. Bunks are sold in pairs, with two pairs recommended on most installations.

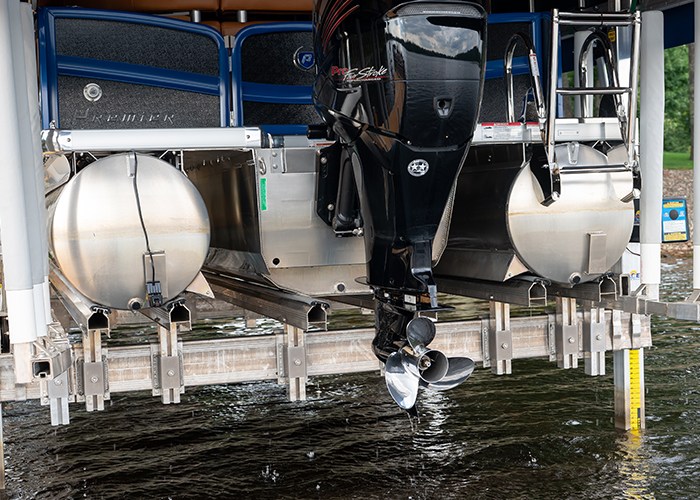

The Pontoon Full Length Bunk/Guide-In System
Is the ideal choice for water depths as low as 2 feet. Four pairs of 25-inch aluminum-framed bunks with maintenance-free vinyl surfaces hold pontoons safely and securely, with adjustable guides to provide effortless landings.

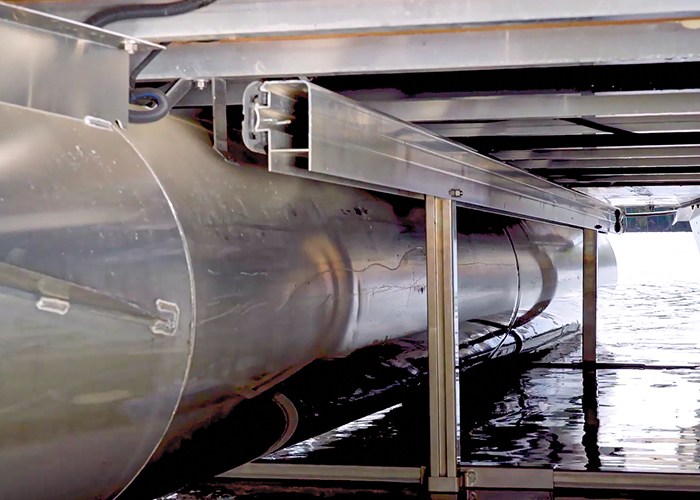

The Pontoon Cradle Pad Bunk/Guide-In System
Is ideal for water depths of three feet and greater. This all-in-one bunk and guide system is built with an aluminum frame and maintenance-free vinyl guides. The extended bunks guide the pontoon to a perfect landing every time, lifting the boat by the frame rather than the pontoons to prevent scratching or denting.

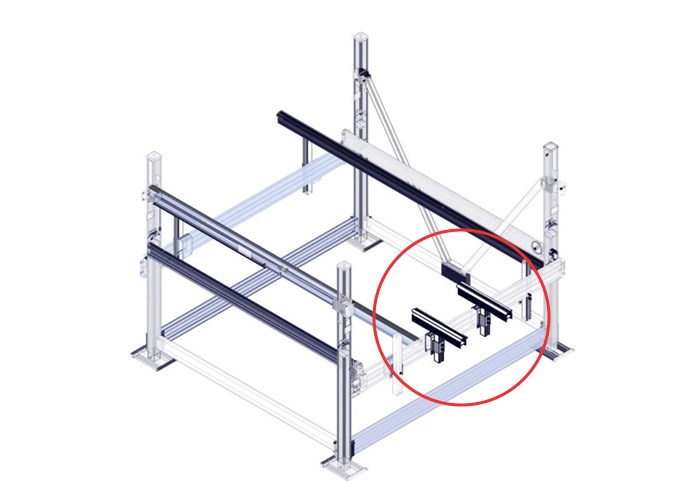

The Bow Support Cradle Pad Kit
Provides additional support for the bow on larger wakeboard boats, used in conjunction with full-length bunks.

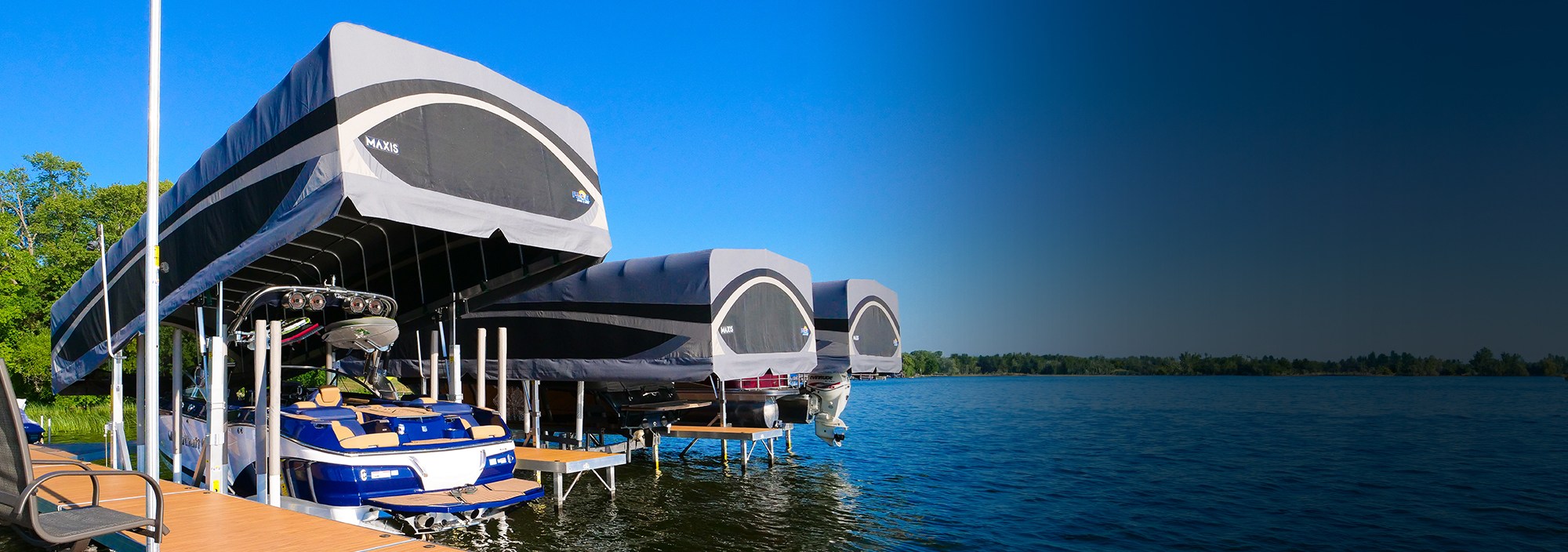

Need a Custom Vertical Lift?
At Lake Country Barge Docks and Lifts, we offer custom boat lift solutions to fit your waterfront needs. Whether you're looking to add a canopy, remote system or custom bunks, explore all the possibilities with us! We’ll help you find the ideal setup for your dock and boat.
Used Vertical Boat Lifts For Sale in Pewaukee
We offer a selection of used docks and boat lifts. For new clients looking to upgrade, we can sell your old lift depending on its condition. Please note, we do not accept used docks at this time.
Serving Lake Country & Beyond
Lake Country Barge Docks and Lifts proudly serves the surrounding lake communities within a 45 minute radius of Pewaukee, delivering premium waterfront solutions to your shoreline.
